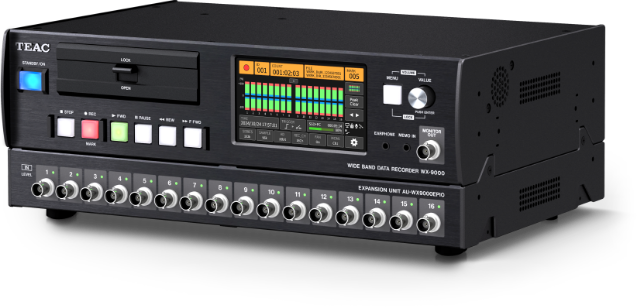

WX-9000
Inheriting the performance of the WX-7000, and further enhancing and evolving it
SSD is adopted as recording media.
Improved operability of the main unit thanks to the adoption of a touch panel!
Clean form with no cables on the back
Comparison with previous WX-7000 Series
| Item | WX‐7000 (previous) | NEWWX‐9000 |
|---|---|---|
| Dynamic Range | 100dB（rms） | 137dBtyp |
| Maximum number of recording channels | 192kHz × 16ch（16bit） | 256kHz × 64ch（16bit） |
| Standalone | Supported | Supported |
| Distributed placement | Unsupported | Supported |
| Isolation between channels | Unsupported | Supported：Every 2 channels |
| Channel expansion | 16・32・64・96・128 | 16・32・48・64・80・96・112・128 |
| Recording Media | RDX（2TB）/SDHC（32GB） | SATA SSD 2.5 inch (4TB)/SDXC |
Achieves high dynamic range of 137dBtyp based on FFT

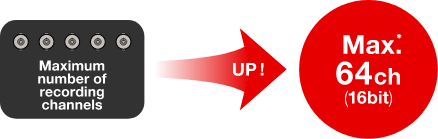

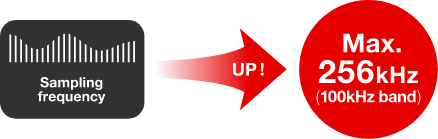

Supports 256kHz sampling (100kHz band) x 64ch (16bit) recording, with higher sampling and improved recording rate.
*Up to 128 channels can be recorded at 102.4 kHz (40 kHz band)

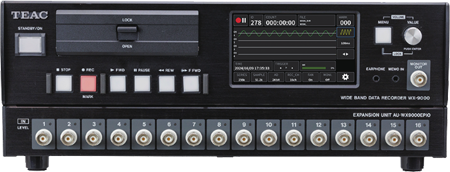

A standalone model that completes recording, playback, settings, and operation in one unit.
What's more, it's even easier to use with a waveform display on the main unit's LCD screen and a touch panel.
Operation with the jog dial and buttons is still possible as before.

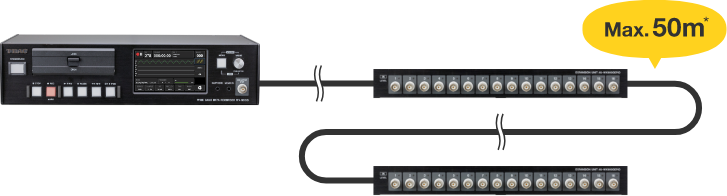

The units can be placed distributedly.
The distance between the main and extension, and between the extension and extension (single recording) can be extended up to 50m (Option).
*Sampling may be subject to restrictions.

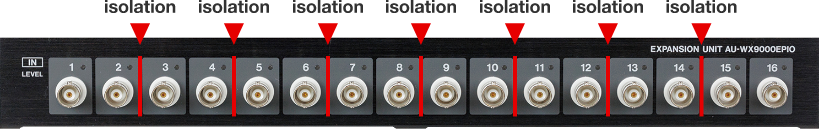

Isolating every 2 channels makes it less susceptible to noise and interference from other channels.

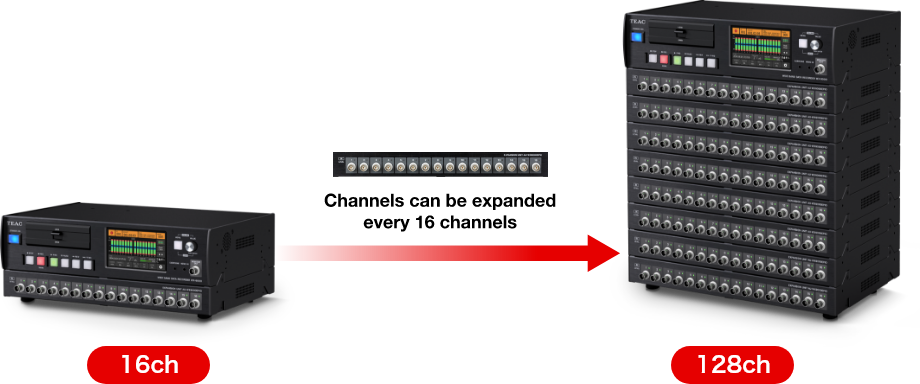

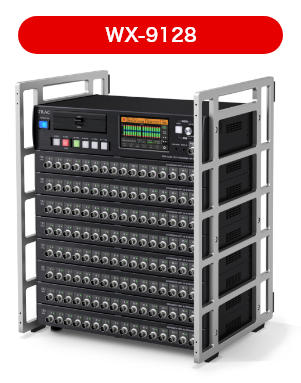

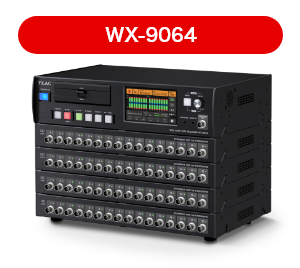

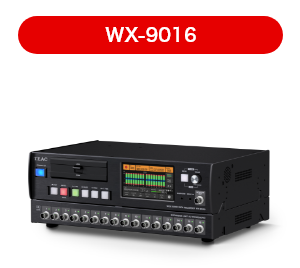

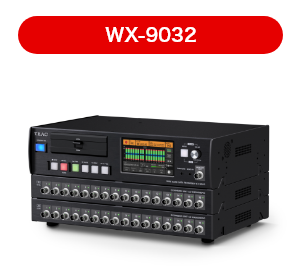

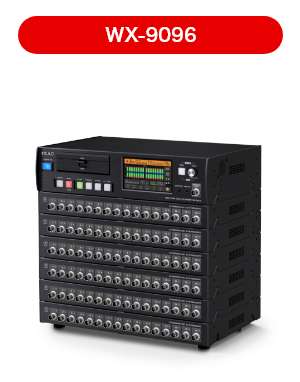

The number of channels can be increased by 16, up to a maximum of 128.

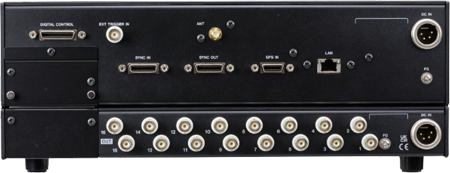

In addition, the connection is cable-free, making it easy to manage the cables on the back.

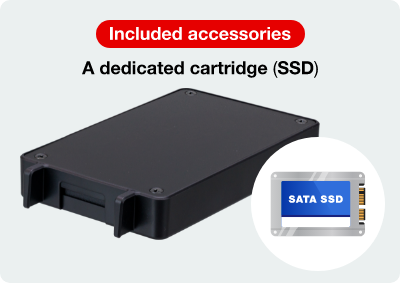

The recording media used is a readily available and inexpensive 2.5-inch SATA SSD (up to 4TB),
which also ensures vibration resistance.

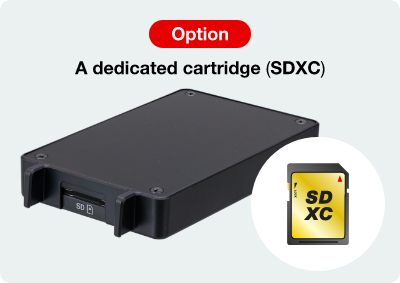

*A dedicated cartridge is used, and the cartridge can be used as is as removable media.
*The SD card cartridge can only be used in the WX-9000.

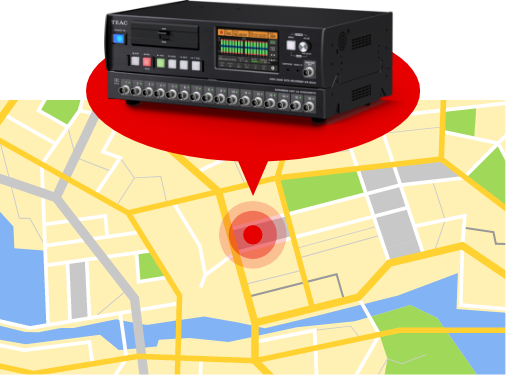

Built-in GPS input (GPS receiver is optional).
Time and location information can be acquired.
