Specifications
Recording unit（WX-9000）
| Recording media | SSD |
|---|---|
| Recording capacity | 1TB - 4TB |
Sampling frequencies and bandwidths
| Sampling frequencies bandwidths：Fs/2.4 |
Series① | Corresponds to DAT/audio sampling frequencies | |||||
|---|---|---|---|---|---|---|---|
| Series② | Corresponds to integer frequencies | ||||||
| Series③ | Corresponds to frequency axis resolution during 2N FFT analysis | ||||||
| Series④ | Corresponds to frequency axis resolution during 2N FFT analysis | ||||||
| Series ① | Series ② | Series ③ | Series ④ | ||||
| Fs (kHz) |
Band (kHz) |
Fs (kHz) |
Band (kHz) |
Fs (kHz) |
Band (kHz) |
Fs (kHz) |
Band (kHz) |
| 256.00 | 100.00 | ||||||
| 192.00 | 80.00 | 200.00 | 80.00 | 204.80 | 80.00 | 131.072 | 51.2 |
| 96.00 | 40.00 | 100.00 | 40.00 | 102.40 | 40.00 | 65.536 | 25.60 |
| 48.00 | 20.00 | 50.00 | 20.00 | 51.20 | 20.00 | 32.768 | 12.80 |
| 24.00 | 10.00 | 20.00 | 8.00 | 25.60 | 10.00 | 16.384 | 6.40 |
| 12.00 | 5.00 | 10.00 | 4.00 | 12.80 | 5.00 | 8.192 | 3.20 |
| 6.00 | 2.50 | 5.00 | 2.00 | 5.12 | 2.00 | 4.096 | 1.60 |
| 3.00 | 1.25 | 2.00 | 0.80 | 2.56 | 1.00 | 2.048 | 0.80 |
| 1.50 | 0.625 | 1.00 | 0.40 | 1.28 | 0.50 | 1.024 | 0.40 |
Number of channels that can be recorded simultaneously
| Sampling frequency(kHz) | SSD | SD | |||||
|---|---|---|---|---|---|---|---|
| Series ① | Series ② | Series ③ | Series ④ | 16-bit | 24-bit | 16-bit | 24-bit |
| 256.00 | 64ch | 32ch | 8ch | ||||
| 192.00 | 200.00 | 204.80 | 131.072 | 80ch | 32ch | 16ch | 8ch |
| 96.00 | 100.00 | 102.40 | 65.536 | 128ch | 80ch | 32ch | 16ch |
| 48.00 | 50.00 | 51.20 | 32.768 | 128ch | 128ch | 64ch | 32ch |
| 24.00 | 20.00 | 25.60 | 16.384 | 128ch | 128ch | 128ch | 64ch |
| 12.00 | 10.00 | 12.80 | 8.192 | 128ch | 128ch | 128ch | 128ch |
| 6.00 | 5.00 | 5.12 | 4.096 | 128ch | 128ch | 128ch | 128ch |
| 3.00 | 2.00 | 2.56 | 2.048 | 128ch | 128ch | 128ch | 128ch |
| 1.50 | 1.00 | 1.28 | 1.024 | 128ch | 128ch | 128ch | 128ch |
Recording time (in days, hours:minutes:seconds)
The following tables show approximate recording times for different capacities according to the combination of sampling frequency, recording bit depth and number of recording channels.
| Fs (kHz) |
Band (kHz) |
8ch | 16ch | 32ch | 48ch | 64ch | 80ch | 96ch | 112ch | 128ch |
|---|---|---|---|---|---|---|---|---|---|---|
| 256.00 | 100.00 | 67:40:52 | 33:52:25 | 16:56:42 | 11:17:55 | 8:28:29 | ― | ― | ― | ― |
| 204.80 | 80.00 | 84:33:37 | 42:19:54 | 21:10:43 | 14:07:19 | 10:35:33 | 8:28:29 | ― | ― | ― |
| 102.40 | 40.00 | 168:42:34 | 84:33:37 | 42:19:54 | 28:13:57 | 21:10:43 | 16:56:42 | 14:07:19 | 12:06:19 | 10:35:33 |
| 51.20 | 20.00 | 335:47:14 | 168:42:34 | 84:33:37 | 56:25:09 | 42:19:54 | 33:52:25 | 28:13:57 | 24:12:08 | 21:10:43 |
| 25.60 | 10.00 | 665:08:30 | 335:47:14 | 168:42:34 | 112:39:20 | 84:33:37 | 67:40:52 | 56:25:09 | 48:22:14 | 42:19:54 |
| 12.80 | 5.00 | 1305:16:42 | 665:08:30 | 335:47:14 | 224:34:56 | 168:42:34 | 135:05:56 | 112:39:20 | 96:36:24 | 84:33:37 |
| 5.12 | 2.00 | 3089:00:13 | 1616:24:22 | 827:27:51 | 556:03:37 | 418:43:18 | 335:47:14 | 280:16:28 | 240:30:45 | 210:37:51 |
| 2.56 | 1.00 | 5673:16:06 | 3089:00:13 | 1616:24:22 | 1094:35:25 | 827:27:51 | 665:08:30 | 556:03:37 | 477:42:58 | 418:43:18 |
| 1.28 | 0.5 | 9752:55:19 | 5673:16:06 | 3089:00:13 | 2122:16:26 | 1616:24:22 | 1305:16:42 | 1094:35:25 | 942:27:53 | 827:27:51 |
| Fs (kHz) |
Band (kHz) |
8ch | 16ch | 32ch | 48ch | 64ch | 80ch | 96ch | 112ch | 128ch |
|---|---|---|---|---|---|---|---|---|---|---|
| 256.00 | 100.00 | 33:52:25 | 16:56:42 | 8:28:29 | ― | ― | ― | ― | ― | ― |
| 204.80 | 80.00 | 42:19:54 | 21:10:43 | 10:35:33 | ― | ― | ― | ― | ― | ― |
| 102.40 | 40.00 | 84:33:37 | 42:19:54 | 21:10:43 | 14:07:19 | 10:35:33 | 8:28:29 | ― | ― | ― |
| 51.20 | 20.00 | 168:42:34 | 84:33:37 | 42:19:54 | 28:13:57 | 21:10:43 | 16:56:42 | 14:07:19 | 12:06:19 | 10:35:33 |
| 25.60 | 10.00 | 335:47:14 | 168:42:34 | 84:33:37 | 56:25:09 | 42:19:54 | 33:52:25 | 28:13:57 | 24:12:08 | 21:10:43 |
| 12.80 | 5.00 | 665:08:30 | 335:47:14 | 168:42:34 | 112:39:20 | 84:33:37 | 67:40:52 | 56:25:09 | 48:22:14 | 42:19:54 |
| 5.12 | 2.00 | 1616:24:22 | 827:27:51 | 418:43:18 | 280:16:28 | 210:37:51 | 168:42:34 | 140:42:19 | 120:40:27 | 105:38:09 |
| 2.56 | 1.00 | 3089:00:13 | 1616:24:22 | 827:27:51 | 556:03:37 | 418:43:18 | 335:47:14 | 280:16:28 | 240:30:45 | 210:37:51 |
| 1.28 | 0.5 | 5673:16:06 | 3089:00:13 | 1616:24:22 | 1094:35:25 | 827:27:51 | 665:08:30 | 556:03:37 | 477:42:58 | 418:43:18 |
- The recording times given in the above tables are approximations.
Actual recording times might differ depending on the recording media used. - The number of recording channels is the total number of analog input channels.
- You can use the following formula as a guide to calculate approximate recording times for other recording media.
Approximate recording time (seconds) = effective recording capacity/(sampling frequency in Hz × number of channels × analog-digital conversion bit depth in bytes + 8000)
Effective recording capacity: recording capacity – reserved space (in bytes)
Recording capacity: nominal media capacity in bytes (example: 1TB = 1 × 1000 × 1000 × 1000 × 1000)
Reserved space: approximately 50 MB for headers and other files besides user data
Analog-digital conversion bit depth: number of bytes for the quantization bit depth (4 for 24-bit or 2 for 16-bit)
8000: voice memo transmission speed at 8kHz fixed sampling frequency with 8-bit quantization (8000 bytes/sec)
Calculation example
The recording time for 1TB capacity with 16 recording channels at 102.4kHz sampling frequency and 16-bit quantization is calculated as follows.
Recording time (seconds) = (1 × 1000 × 1000 × 1000 × 1000 – 50 × 1024 × 1024)/(102.4 × 1000 × 16 × 2 + 8000)
= 304416 (seconds) = 84:33:37
Voice memo input and output
| Sampling frequency | 8kHz |
|---|---|
| Quantization bit depth | 8bit |
| File format | WAV file |
| Number of voice memo input channels | 1 (mono) |
| Mic input jack connector | 3.5mm TS mini jack |
| Earphone jack connector | 3.5mm TS mini jack ・Speaker output is disabled when an earphone is connected. |
| Voice memo output volume adjustment function | The output level can be adjusted using the WX9K Navi app or the hardware controls. |
| Voice memo or monitoring signal selection function | The signal source for voice memo output can be set to either the voice memo or the monitoring output. |
Internal clock
| Clock precision | ±2 PPM (at 25℃) |
|---|---|
| Battery life | 10 or more years (at 25℃) |
External interfaces
| LAN | 1000BASE-T connector × 1 RJ-45 |
|---|---|
| DIGITAL CONTROL | External control input/output connector × 1 Angled, half-pitch, 36-pin Hirose DX10A-36S |
| EXT TRIGGER IN | External trigger signal input connector × 1 BNC connector |
| SYNC IN | Recording synchronization input connector × 1 Angled, half-pitch, 28-pin Hirose DX10A-28S |
| SYNC OUT | Recording synchronization output connector × 1 Angled, half-pitch, 28-pin Hirose DX10A-28S |
| FG | Frame grounding terminal(s) |
| GPS IN | GPS connector × 1 Angled, half-pitch, 20-pin Hirose DX10A-20S |
General
| External dimensions(W × H × D, not including protrusions)/weight* |
WX-9000 348 x 82 x 220 mm / 3.2kg AU-WX9000EPIO 348 x 41 x 220 mm / 2.6kg WX-9016 348 x 123 x 220 mm / 5.7kg WX-9032 348 x 164 x 220 mm / 8.3kg WX-9048 348 x 205 x 220 mm / 10.8kg WX-9064 348 x 246 x 220 mm / 13.4kg WX-9080 348 x 287 x 220 mm / 15.9kg WX-9096 348 x 328 x 220 mm / 18.5kg WX-9112 368 x 428 x 318 mm / 23.6kg WX-9128 368 x 469 x 318 mm / 26.4kg *Weight does not include AC adapter. Expansion unit connection screws:M3×6 (countersunk) Rubber feet attachment screws:M3x8 (binding) |
|---|---|
| DC power supply input |
Rated Input voltage:DC12V - 28V Input voltage range:DC11V - 30V |
| Power consumption |
16-channel model:approx.62W 32-channel model:approx.104W 48-channel model:approx.146W 64-channel model:approx.188W 80-channel model:approx.230W 96-channel model:approx.272W 112-channel model:approx.314W 128-channel model:approx.356W |
| Included AC adapter |
Rated Input voltage:AC100V - AC240V Input voltage range:AC90V - AC264V Input power supply frequency:50/60±3Hz Rated output voltage:16V Rated output current:6.5A External dimensions (WxHxD):68x35x153 mm Weight:650g or less |
| Operating conditions |
Operating temperature/humidity range:0 to 40℃/10 to 80% (no condensation) Storage temperature/humidity range:–20 to 60℃/5 to 90% (no condensation) Operating air pressure range:860 - 1060hPa Vibration resistance:MIL-STD-810H / Figure 514.8C-2 *Confirm the operating conditions of each type of recording media. |
| Note | Cooling fan life:20,000 hours(fans alone at 25℃) |
Included accessories
| Microphone | 1 (for voice memos) |
|---|---|
| Earphone | 1 |
| SSD case | 1 |
| Connection reference sheet | 1 (printed edition) |
Connections
Powering the WX-9000
One included AC adapter can supply power to both the WX-9000 recording unit and two AU-WX9000EPIO expansion units.
Expansion units that are not connected to AC adapters receive power through stack connection adapters.
Connect AC adapters as shown in the following illustrations.
ATTENTION
Do not supply power to AC adapters or DC INs until after securely connecting expansion units.
Before connecting or disconnecting expansion units, turn off the power to the AC adapters and DC INs.
Place AC adapter bricks away from expansion units.
When using in Japan, use the included AC cord(s) with PSE mark(s) on the plug(s).
When using in the North American region, use the included AC cord(s) with CSA mark(s) on the plug(s).
WX-9016
Connect the included AC adapter to the DC IN on the WX-9000.

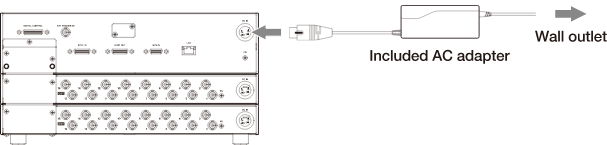

WX-9032
Connect the included AC adapter to the DC IN on the WX-9000.
WX-9048
Connect one included AC adapter to the DC IN on the WX-9000 and the second included AC adapter to the DC IN on the third AU-WX9000EPIO unit from the top.

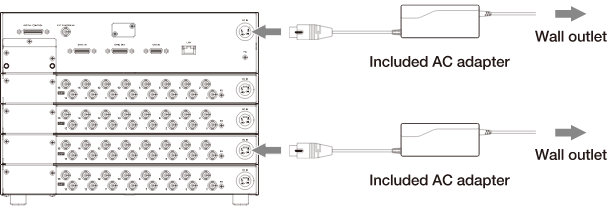

WX-9064
Connect one included AC adapter to the DC IN on the WX-9000 and the second included AC adapter to the DC IN on the third AU-WX9000EPIO unit from the top.

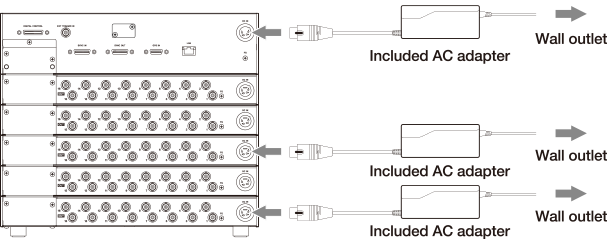

WX-9080
WX-9096
Connect one included AC adapter to the DC IN on the WX-9000, the second included AC adapter to the DC IN on the 3rd AU-WX9000EPIO unit from the top and the third adapter to the 5th unit.
WX-9112
WX-9128
Connect one included AC adapter to the DC IN on the WX-9000, the second included AC adapter to the DC IN on the 3rd AU-WX9000EPIO unit from the top, the third adapter to the 5th unit and the fourth adapter to the 7th unit.
Synchronized recording
| Number of synchronized recording units | 2 maximum |
|---|
Expansion units
| Analog input | |
|---|---|
| Input signal type | DC/AC/IEPE |
| Number of input channels | 16 |
| Input connector type | BNC(Z=50ΩType) |
| Input format | Unbalanced |
| Input impedance | 1MΩ |
| Input range | ±0.1/0.2/0.5/1/2/5/10/20/50V |
| HPF | OFF/10Hz/20Hz (−18dB/oct Butterworth filter) |
| Weighting | FLAT/A/C(IEC TYPE 1 compliant) (Sampling frequencies of 6 kHz and less are not supported) |
| Absolute maximum input voltage | ±50V(0.1/0.2/0.5/1/2/5/10V input ranges) ±100V(20/50V input ranges) |
| Input level LEDs | Lights green when input level exceeds 10% of its input range Lights red when it exceeds 115% |
| Input signal quantization bit depth | 16/24bit |
| Extended range | ±127% (of rated range) |
| Analog-digital conversion method | ΔΣ conversion method (with simultaneous sampling and anti-aliasing filter) |
| Input frequency flatness characteristics (0dB at 100Hz) |
10 V or lower input range:±0.5dB 20 V or higher input range: 20 kHz bandwidth or lower:within ±0.5 dB Frequency bandwidths other than above：within ±2 dB (In AC mode, 1 Hz or higher) |
| Input range precision | ±1% or less |
| Phase difference between input channels(identical input range) |
Within the same expansion unit 10 V or less input range 20 kHz bandwidth or lower:1 degree or less Frequency bandwidths other than above:3 degrees or less 20 V or higher input range: 20 kHz bandwidth or lower:2 degrees or less Frequency bandwidths other than above:3 degrees or less |
| Dynamic range |
135 dB or more (24-bit, 10V input range, 12.8kHz sampling frequency, input short, 3200-line FFT, 100 Hz or higher noise peak level) |
| S/N ratio (24-bit) |
24bit Input range less than 1 V: 20 kHz bandwidth or lower:87 dB or more 40 kHz bandwidth or lower:85 dB or more Frequency bandwidths other than above:82 dB or more 1V or 2V input range: 20 kHz bandwidth or lower:104 dB or more 40 kHz bandwidth or lower:102 dB or more Frequency bandwidths other than above:97 dB or more 5V or 10V input range: 20 kHz bandwidth or lower:108 dB or more 40 kHz bandwidth or lower:105 dB or more Frequency bandwidths other than above:100 dB or more 20V input range: 20 kHz bandwidth or lower:99 dB or more 40 kHz bandwidth or lower:97 dB or more Frequency bandwidths other than above:91 dB or more 50V input range: 20 kHz bandwidth or lower:106 dB or more 40 kHz bandwidth or lower:103 dB or more Frequency bandwidths other than above:99 dB or more |
| Crosstalk | −103 dB or lower(1 kHz, 1V input range, 48kHz fs) |
| Distortion | 0.1% or less (1 kHz) |
| IEPE sensor power supply | DC 24V / 4mA, 0.5mA |
| IEPE sensor disconnection detection | Detection function included for each channel (Yellow LED blinks when disconnected) |
| TEDS | Supports TEDS Ver. 1.0. |
| Insulation | Every 2 channels 1 kVACrms:60 seconds |
| Analog output | |
|---|---|
| Number of output channels | 16 |
| Output connector | BNC (Z=50Ω type) |
| Output format | Unbalanced |
| Output impedance | 50Ω |
| Output range | ±1 – 5V (adjustable in 0.1V steps) |
| Output signal quantization bit depth | 16/24-bit |
| Extended range | ±127% (of rated range) |
| DA conversion method | ΔΣ conversion method |
| Output frequency flatness characteristics |
20 kHz bandwidth or lower:within ±0.5 dB 40 kHz bandwidth or lower:Within +0.5 dB to −1.0 dB Frequency bandwidths other than above:Within +0.5 dB to −2 dB |
| Phase difference between output channels |
Within the same expansion unit 80 kHz bandwidth or lower:1 degree or less 100kHz bandwidth:2 degrees or less |
| Output range precision | ±1% or less |
| S/N ratio |
20 kHz bandwidth or lower:104 dB or more 40 kHz bandwidth or lower:102 dB or more Frequency bandwidths other than above:94 dB or more |
| Crosstalk | −104 dB or lower (20kHz bandwidth, 1kHz signal) |
| Distortion | 0.01% or less (1kHz signal) |
Options
| Remote control unit | ER-WXRC(9000) |
|---|---|
| GPS receiver | Contact us |
| Side frames | TZ-WX9KSF16/31/48/64/80/96/112/118 |
| DC power cable | CL-DRDC |
| Synchronization cable | KIT, SYNCHRO CABLE WX 1M |
| Cable connection adapter (for recording unit) | TZ-WX9KCCA(M) |
| Cable connection adapter (for expansion unit) | TZ-WX9KCCA(E) |
| Input/output connection cable | |
| SSD case | TZ-WX9KSSDCASE |
| SD adapter | TZ-WX9KSDADP |
Exterior drawings
By adding more AU-WX9000EPIO expansion units, the numbers of input/output channels can be increased 16 at a time.
Some combination examples follow.

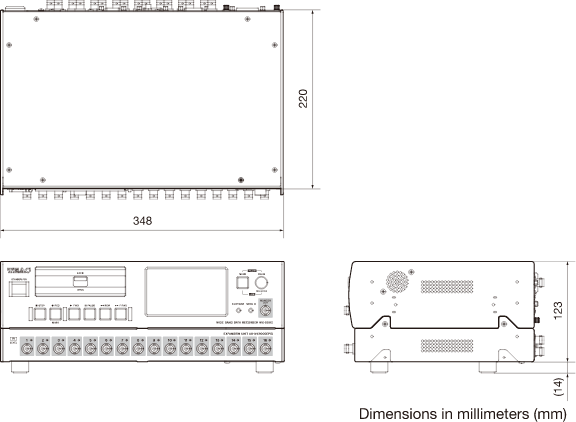

WX-9016
WX-9032
WX-9064
WX-9112

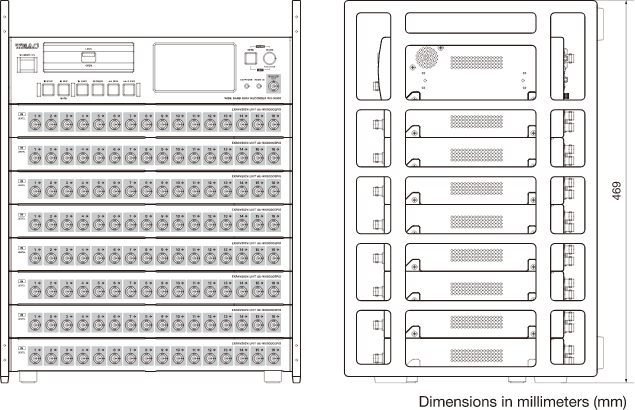

WX-9128
- In order to improve products, specifications and appearance could be changed at any time without warning.
- Illustrations in this document might differ in part from actual products.
