PC control application (WX9K Navi)

About WX9K Navi

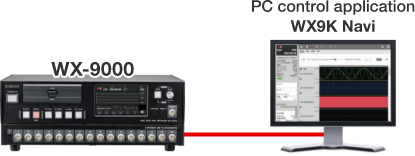

This is a dedicated software for the WX-9000 that enables setting of recording conditions, data recording, and waveform display via a network between the WX-9000 wideband data recorder and a PC.

What you can do with WX9K Navi

Settings

• Set the recording location
• Set the measurement conditions（Basic settings, GPS, time, trigger, monitor output, synchronization）

Record or Playback

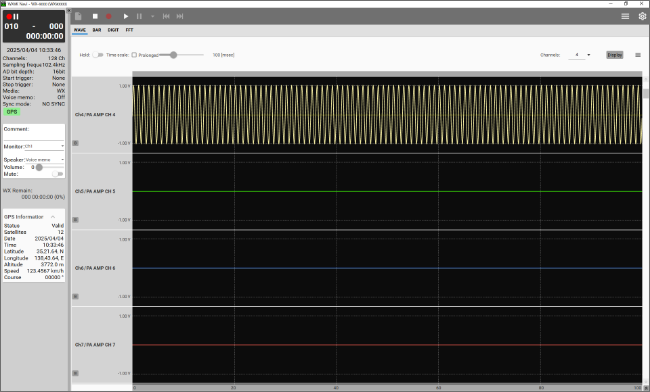

• Data being recorded can be monitored in real time on a computer screen
• Sensor settings (TEDS or actual input) and post-calibration data can be checked
• Analog output amplifier can be used to check data after recording

Data processing and analysis using a computer

• Recorded data is saved as TAFFmat (TEAC Data Acquisition File Format) common to all TEAC data recorders.
• Measurement data can be displayed by waveform display software (TX-View)
